Cassette vs Wall Aircond Servicing: The Differences
Cassette aircond service needs scaffolding, drain pump care, and longer time on site. Here's what makes it different from wall unit service.
When comparing cassette vs wall aircond servicing, the process is never just the same job done overhead. We often see office managers surprised by the difference in procedures and pricing. This ceiling-mounted equipment requires entirely different safety protocols, tools, and timelines.
Our team wants to break down every major cassette aircond service difference, so you know exactly what you are paying for.
For booking, see cassette aircond servicing. Let’s look at the specific technical requirements that make these units unique.
Difference 1: Mounting and access

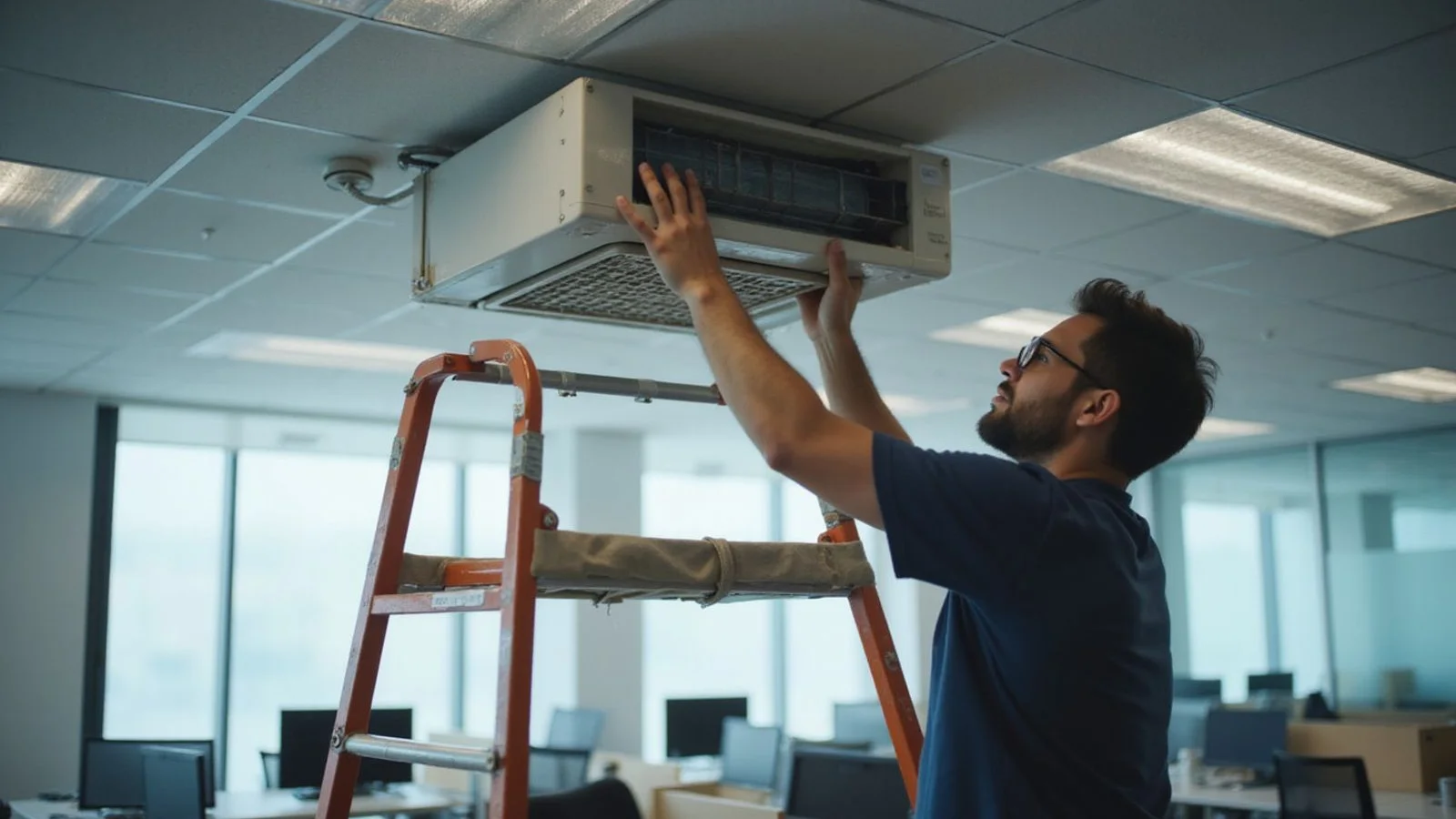

Wall units mount at 1.8 to 2.0 metres, which is easily reachable from a standard step ladder. Cassettes sit flush in the ceiling at 2.8 to 3.5 metres or higher. We always require proper scaffolding or a heavy-duty step platform with a spotter for these heights.
The Department of Occupational Safety and Health (DOSH) in Malaysia enforces strict guidelines for working at heights to prevent falls. This means setup is a serious, regulated process that requires MS 1462 certified scaffolding for commercial ceilings.
The practical implications of this height difference include:
- Extended setup time: Assembling certified scaffolding adds 20 to 30 minutes per unit.
- Strict safety procedures: Working overhead significantly increases the risk of falling tools or debris.
- Two-person crew requirement: One technician works on the platform, while the second passes tools and manages the heavy wash bucket below.
Difference 2: Drainage: pump vs gravity
Wall airconds rely on a downward-sloping drain hose. Gravity simply pulls the condensate off the coil, into the drain pan, and out the hose to the exterior. We do not have to worry about mechanical lifting.
Cassettes cannot use gravity because they sit hidden in the ceiling cavity. They require a mechanical drain pump, like the widely used Aspen Mini Orange or Sauermann Si-20, to push condensate up and into a horizontal drain pipe.
Malaysia’s high humidity causes rapid algae and biofilm buildup inside these tiny pumps. Common failure points include:
- Clogged pump bearings: Preventing the tiny motor from spinning.
- Stuck float switches: Failing to trigger the pump when the water level rises.
- Blocked drain trays: Causing water to pool and overflow onto ceiling tiles.
Our cassette service always includes a full drain pump inspection. Technicians clear the bearings, test the switch operation, and scrub the tray to remove biofilm. Wall unit maintenance skips this mechanical step entirely.
Difference 3: Containment: canvas cover
Standard wall units use a simple wash bag fitted tightly around the unit body. The bag catches the rinse water and funnels it neatly into a bucket below. We find this setup quick and straightforward.
Cassettes demand a much more extensive containment strategy. Technicians must hang a large protective canvas cover completely around the 4-way ceiling unit. This funnel directs the water down into a high-capacity collection bucket on the floor.
Chemical rinse water mixed with alkaline coil cleaners would otherwise drip across a wide radius. Without this specialized canvas cover, a chemical wash turns into a disaster. Sloppy servicing leaves wet patches across your office floor, ruins plaster ceiling tiles, and permanently stains customer-facing counters or merchandise below.
Difference 4: Time on site
Scaffolding setup, drain pump inspection, and canvas containment all add significant time to a cassette service visit. We plan our technician schedules around these extended durations. A standard three-cassette office requires roughly half a day to complete properly, as dismantling the large fascia panel alone takes extra care and time.
| Service | Wall unit | Cassette unit |
|---|---|---|
| Standard service | 45 to 60 min | 60 to 90 min |
| Chemical wash | 90 to 120 min | 120 to 150 min |
| Chemical overhaul | 2 to 3 hours | 3 to 4 hours |
Why cassettes need more frequent servicing
Cassettes typically operate in commercial environments like Petaling Jaya cafes, retail shops, and corporate offices. These spaces experience much longer daily run hours and pull in significantly higher dust loads compared to a quiet residential bedroom. We highly recommend a strict three-month service cadence. Waiting six months is simply too long for most commercial units operating in our local climate.
See the office cassette maintenance schedule for a complete quarterly plan. You can also read about drain pump water-leak issues to understand the most common failure mode we encounter in the field.
Cost rationale for cassette vs wall aircond servicing
The price premium of a cassette service over a standard wall unit is based on measurable, concrete factors. A standard wall unit chemical wash in Petaling Jaya might cost around RM 120, while a 2.0HP ceiling cassette typically starts around RM 250. We price these services to reflect the specific labor and equipment required to do the job safely.
The price difference directly covers:
- Scaffolding assembly labor (15 to 20 minutes per unit)
- A mandatory two-person safety crew
- Mechanical drain pump dismantling and cleaning
- Canvas containment (specialty protective equipment)
- Significantly longer service times
How AMg services cassettes
We schedule ceiling cassette maintenance primarily for after-hours, including evenings and weekends, so we do not disrupt your daily operations. Damansara Utama, SS2, and the wider Petaling Jaya area are our densest service zones.
When you need reliable cassette vs wall aircond servicing, our team knows the local operating-hour patterns and books around your peak times. Simply WhatsApp us with your unit count, building location, and available time windows. Technicians will review your details and provide a specific per-visit quote or an ongoing maintenance contract.
Frequently asked questions
Why do cassette units need scaffolding? +
Ceiling-mounted access. A proper scaffold or platform is safer and faster than wobbling on a ladder, and lets the technician work with both hands free for the chemical wash.
Does my cassette have a drain pump? +
Yes — all ceiling cassettes do. They pump condensate up to a horizontal drain run in the ceiling. Wall units gravity-drain through a downward-sloping hose.
Is cassette service worth twice the price of wall units? +
Cassettes serve much larger spaces (offices, cafes, retail). On a per-square-foot-cooled basis, the cost is similar. The per-unit price is higher because of scaffolding, drain pump work, and longer time-on-site.
